Optically Isolated Interface Module Kit

Optically Isolated Interface Module Kit Review

Price :

Rate This Product
		Brand:	Ramsey
		List Price:
		Our Price:
		Total Price: In Stock. Usually ships in 1-2 business days

Optically Isolated Interface Module Kit Feature

• 5000 VAC of isolation!
• Drives up to 150mA at up to 40VDC
• Works with your existing projects and applications
• Electronic Kit - Assembly Required!

Optically Isolated Interface Module Kit Overview

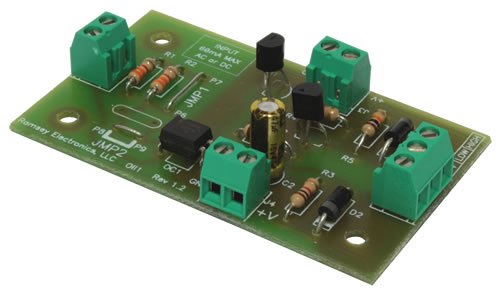

The OM2 provides an optically isolated interface between two devices. It can be used to convert nearly any AC or DC signal to logic level signals. It can also be used to activate a relay upon detection of an input signal. BUT the really great thing about the OM2 is the input and output are totally isolated from each other! Use virtually any voltage input level above 1.5 volts (as long as long as the input current is limited to a maximum of 60mA). The input can be a simple DC level or an AC signal with a frequency up to 250KHz. The input and output are optically isolated from each other to 5000 volts AC (rms), and the output can drive up to 150mA at up to 40VDC. It even provides active low and high outputs when the input is activated!
